Description
|
Product Features |
|
|
Lifting Height |
1900mm |
|
Drive-Thru Width |
2660mm |
|
Overhead Switch |
3700mm |
|
Short Arm Reach |
785mm |
|
Long Arm Reach |
1150mm |
|
Screw Pad Max. Height |
160mm |
|
Screw Pad. Min. Height |
85mm |
|
Width Between Columns |
2800mm |

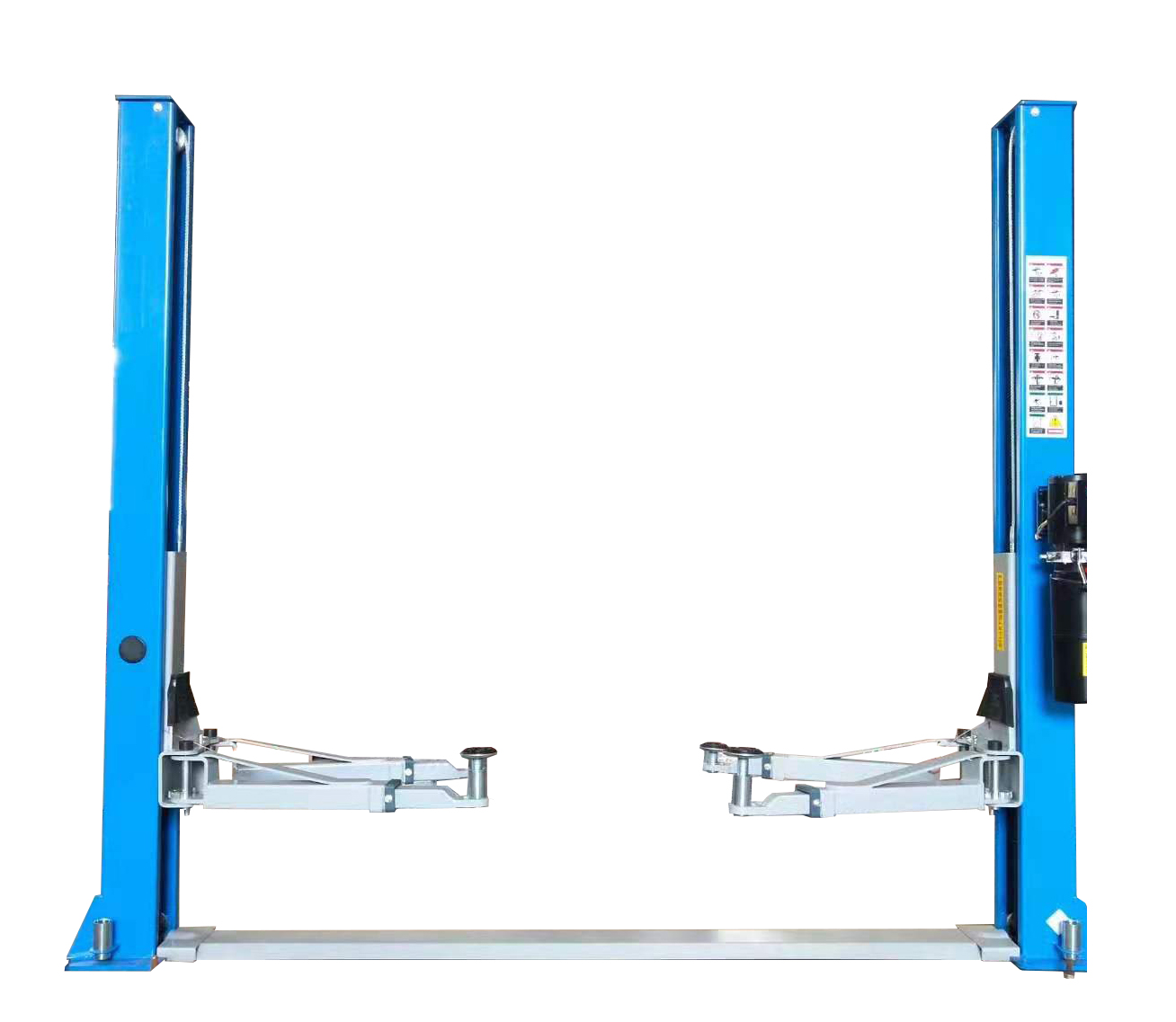

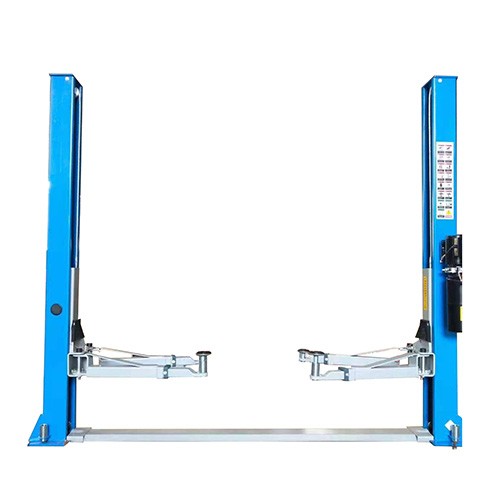

4 ton car lift
1. Symmetric arms; electric/hydraulic power system;
2. Limit switch inside the column;3. Hydraulic cylinder in both columns and heavy-duty cable equalization system;
4. Release cables in both carriages, disengage the locks;
5. Electrical release(control box) available;

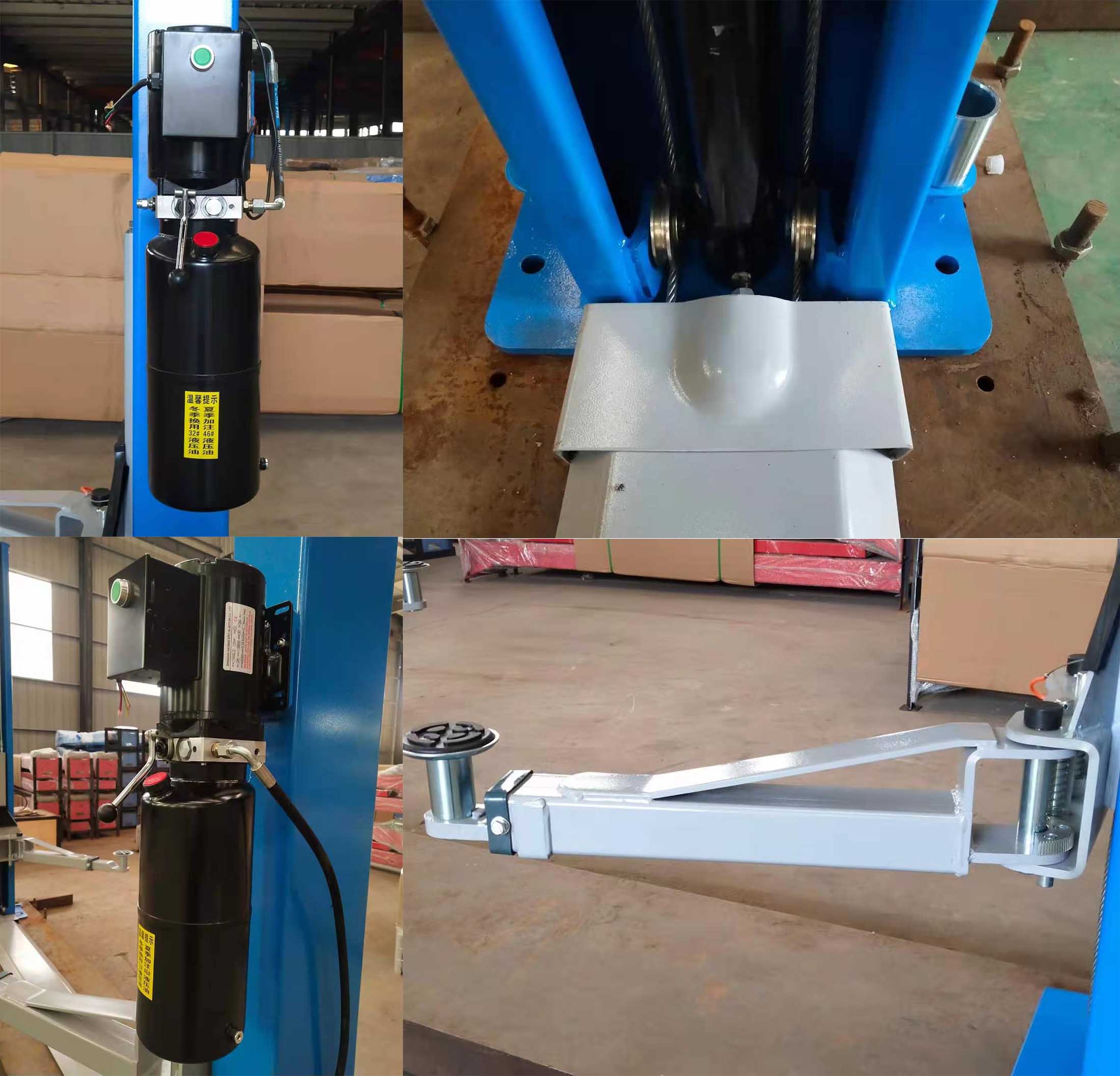

Details

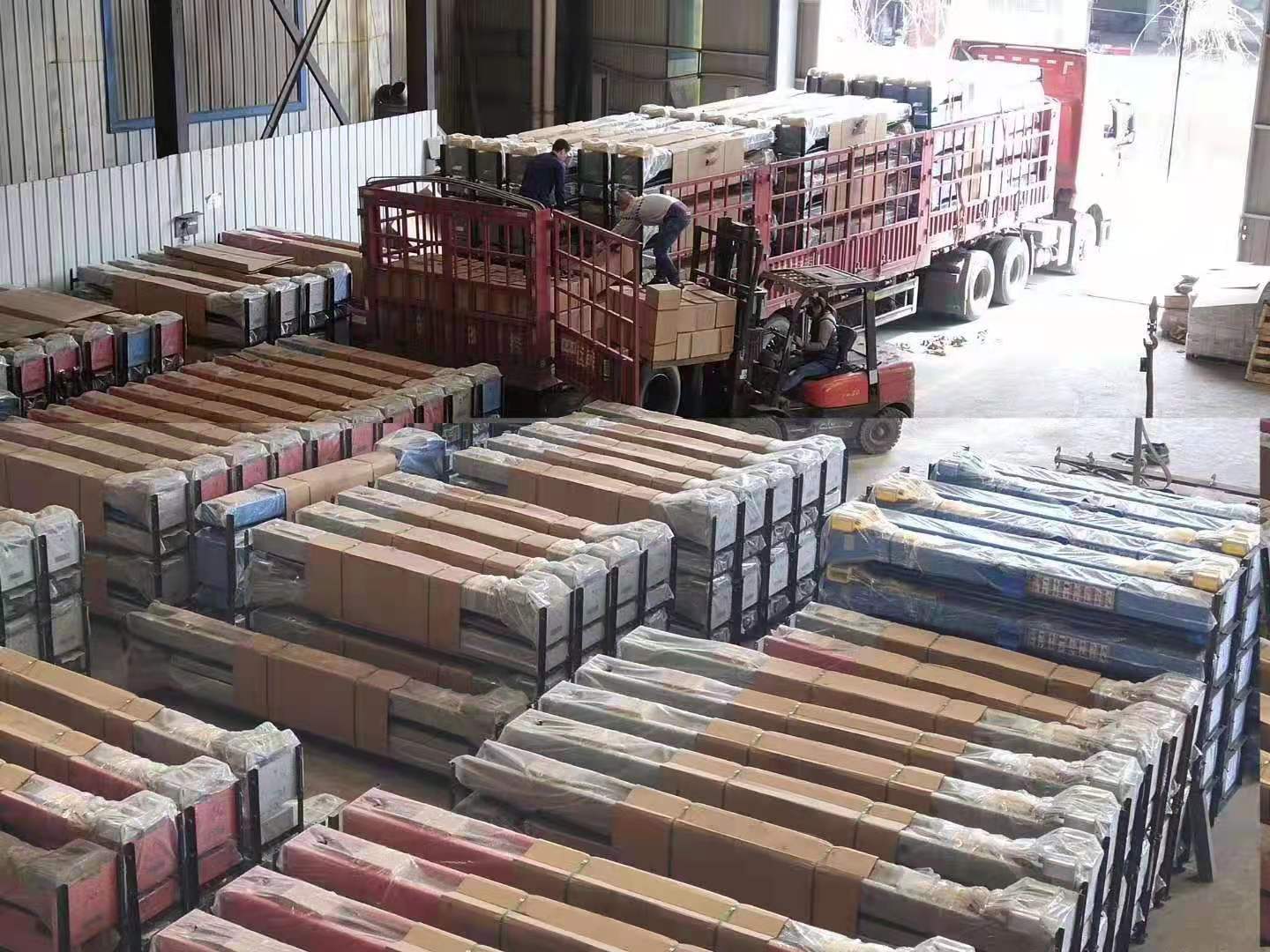

Delivery
